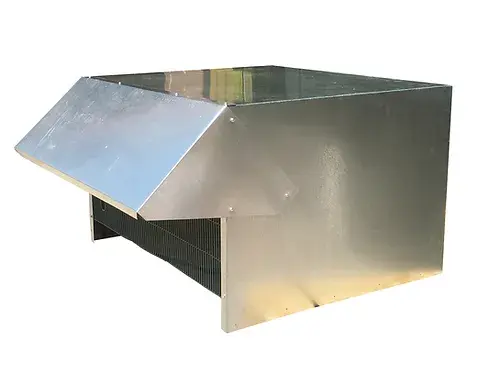

Outdoor Scroll Med Temp Condensing Unit 4HP, R404A 3PH/220V
Outdoor Scroll Med Temp Condensing Unit 4HP, R404A 3PH/220V
Assembled in USA. Unit equipped with Invotech YM70E7G-Q100 Scroll Compressor.
38-5/8''L X 28-5/8''W X 22-1/8''HHP:4HP
Volts:208/230 VAC
Phase:3 PH
Refrigerant:R404a
BTU: 28,334 BTU @ 20°F
Nominal Performance
Capacity4,489 / - Watts
28,334 / - BTU/Hr @ 20F
Power Input 4,397 / - Watts
Locked Rotor Amps 136.00 / - Amps
Max Continuous Current - / - Amps
Rated Load Amps 14.3 / - Amps
Discharge Tube: 1/2"
Suction Tube:7/8"
Testing Conditions
Condensing Temperature 129.9 °F
Evaporating Temperature 19.9 / - °F
Liquid Temperature 115.0 °F
Return Gas Temperature 95.0 °F
Ambient Temperature 95.0 °F
Application
Evaporating Temp. Range MBP @ -9.9° F to 34.0° F
Heat Pump -° F to -° F
Refrigerant R404A
Refrigerant Flow Control Capillary Tube
Compressor Cooling Fan
Compressor and Motor data
Compressor Type Scroll
Oil Type : Polyolester Oil
Warranty Information: One year warranty on compressor from date of purchase. Buyer is responsible for shipping cost. Defective unit must ship prepaid. Return Merchandise Authorization (RMA) must be pre-approved by contacting us. No exception. NOTE: We only ship this unit to 48 Continental States. CROSS REFERENCES: "CS27K6E-PFV-236 CS20K6E-PFV-***"-M63A243BBCAVA9522ZXD"ICE2106 9181123-11"
